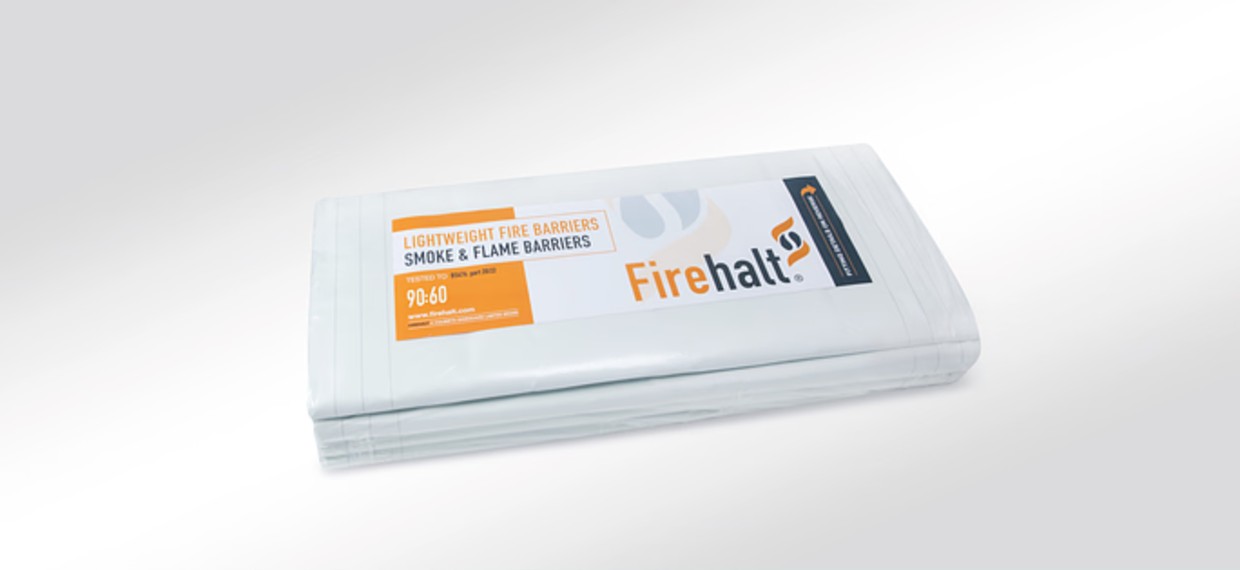

Fire Barrier Overview
Firehalt 90:60 is a horizontal application, providing 90 minutes integrity and 60 minutes insulation.
The product is manufactured using specially woven and treated glass fibre fabrics, with a patented proprietary laminated insulation layer.
It uses a unique operation method and installation detail that requires no specialist tools or fittings. The product and installation detail have full KIWA/IFCC certification to 90 mins integrity and 60 minutes insulation, including a detail for service penetration management.
Details
Firehalt cavity fire barrier products are manufactured in the UK using a unique multi-layer construction. Our 90:60 high performance fire barrier comes with fully illustrated fitting instructions in every pack.
All Firehalt fire barriers are tested and product certified by widely recognised independent test houses and certification bodies.
See our Stockists page to find your nearest Firehalt supplier.
Features
- Multi-layer, horizontal design
- Glass fabric coated with proprietary non-toxic, high temperature finish
- Easy to install
- Can be easily cut with knife or scissors
- Fully illustrated fitting instructions included in every pack
- Independently tested and certified
Specifications
| Integrity | 90 minutes |
| Insulation | 60 minutes |
| Thickness | 18mm |
| Length | 6.0m |
| Width | 1.3m |
| Area | 7.8m2 |
| Pack Weight | 38 kg* |
*Please note that this horizontal barrier is heavier than our other barrier products. 2 people will be required to safely lift and install.
